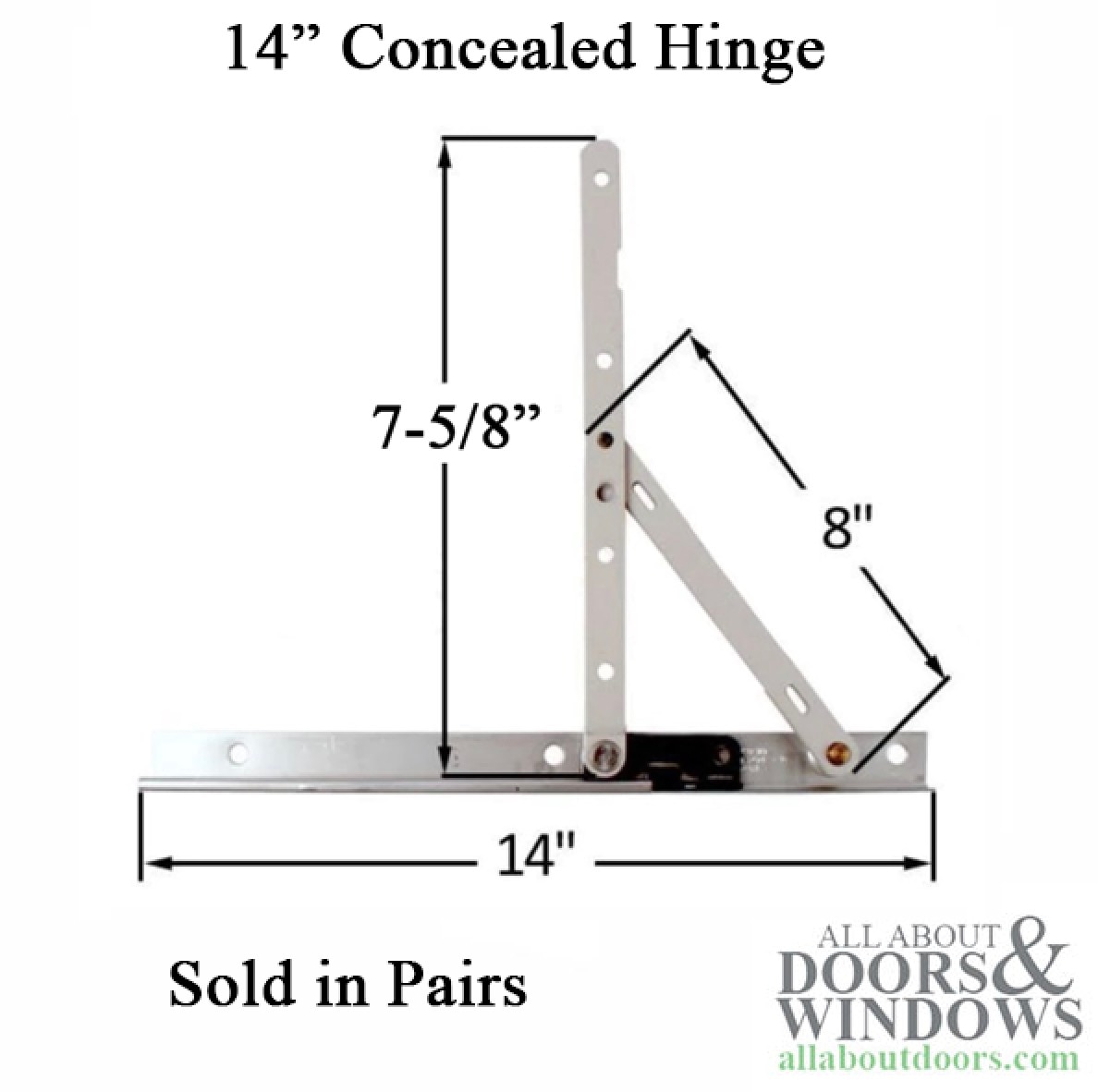

Generic 14" Washable hinge arm 6-15/16 opening

Generic Replacement for Truth 14.17 Series concealed standard casement window hinge Kit.
2 stainless steel tracks and 2 Stainless steel hinge arms, 1 left and 1 right
Stainless steel track with adjustable brass stud.

Application: Casement hinges mounted on left or right side of windows
Long Link: 7-7/8 inches, Shoe Attached
Short Link: 7-5/8 inches (detachable)
Sash-Frame Opening: 6-15/16 inch (176.2mm) 6.938
Arm Material: Stainless Steel
Note: Arm attachment may be standard snap on stud or detachable clip.
Track Length: 14 inch
Track Material: Stainless Steel w/ Brass Stud
Stack Height: 7/16 inch

Priced and sold in pairs - Upper and Lower
* When purchased in pairs, you get a top and bottom hinges that can be used on windows opening to the left or right.

Screws are NOT included, recommended size are #7 x 3/4 inch, stainless steel, Phillips Flat Head, Sheet Metal Screw. Actual screw will be determined by application and window material

Markings on Hinge Arm: 14D217s L / R
NOTE: Generic - Same size as Truth 14.17 E-Gard casement hinge assembly
