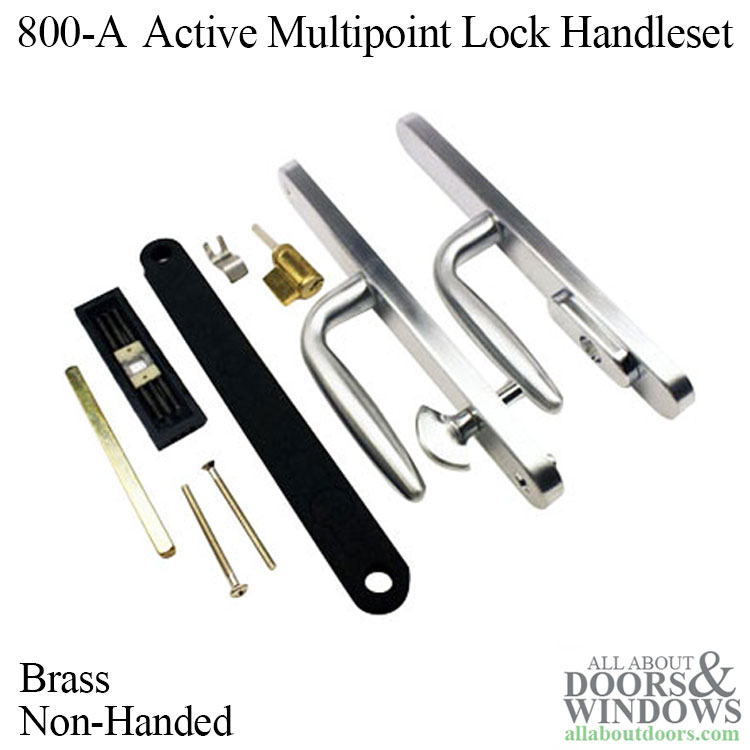

Active Handle Set 800A Series Multi-Point Lock Trim, Non-Handed, Brass - Choose Color
800-A Series multipoint lock trim with a American cylinder.
Will work with many multipoint locks by Amesbury, as well as most multipoint lock brands.
Handles can be used in the traditional American orientation with the thumb-turn above the handle OR the inverted European style.
Easily rekeyed.
Simple installation.
Function: Active
Lever: 800
Plate: A
Material: Brass
Color Options:
Lifetime Satin Nickel
Lifetime Polished Brass

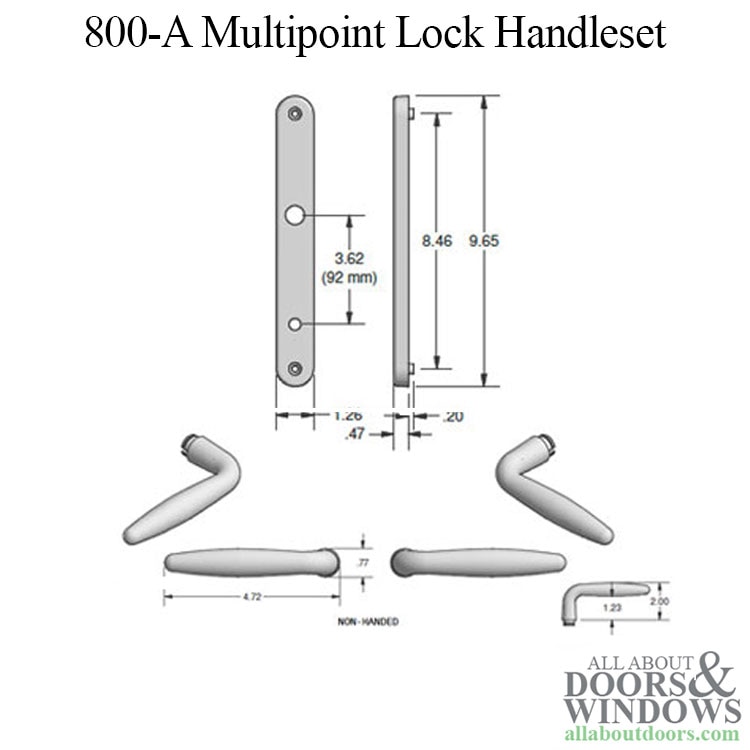

Measurements:
Handle center to cylinder center: 3-5/8 inches
Can be used for Key above or Key below applications
Screw hole centers: 8-7/16 inches
Plate length: 9-5/8 inches
Plate width: 1-1/4 inch
Plate depth: 1/2 inch
Spindle Diameter: 5/16 inch (8mm) Square
HANDING INFO
Handing: Right Hand shown, but this trim is NON-HANDED
Handing is determined from the exterior and by which side the hinges are found.
The lever points towards the hinges.
Hinges on left, left hand trim needed.
Hinges on right, right hand trim needed.
