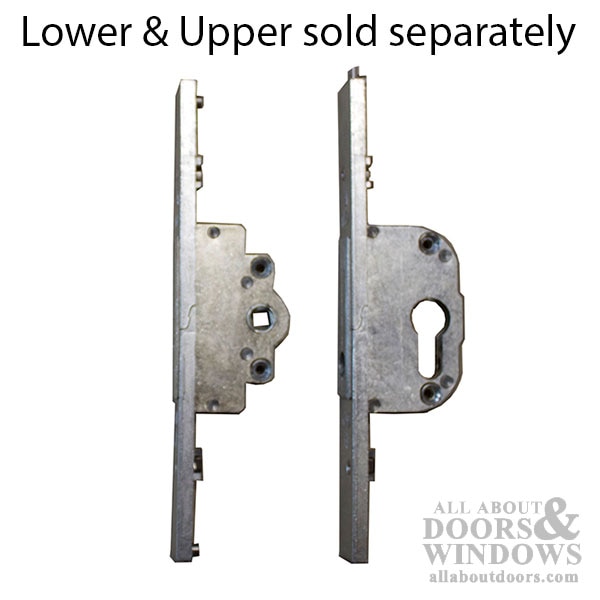

Roller Version Mortise Lock Gear for 180° Lever, 1-9-16 Backset
G-U ALU-JET 06 Insertable Gearbox
This version comes without the mishandling device. Forms part of a high security modular plug-in system, that doesn't require tools to be fitted.
Non-handed. Silver finish.

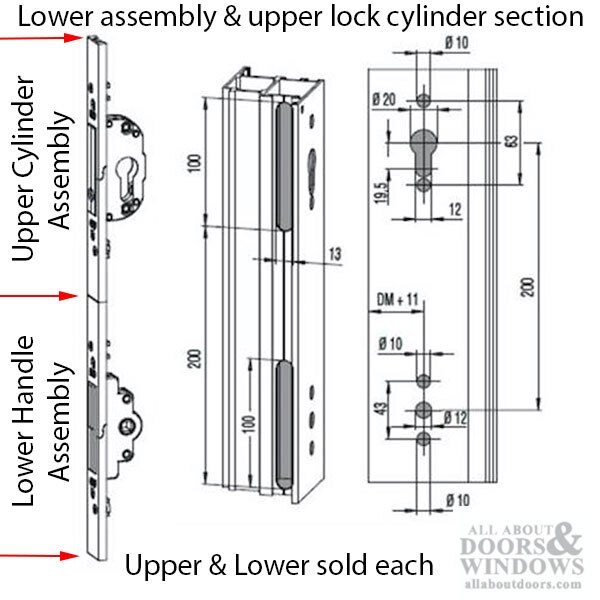

Distance between engagement pins: 190mm (7.48")
Distance between fastening points: 43mm (1.65")

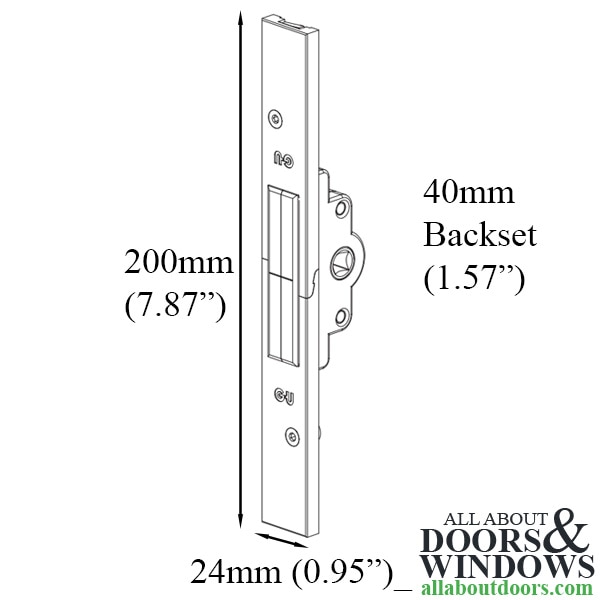

Fore end size: 200mm/24mm (7.87"/0.94")
Backset: 40mm (1.57", 1-9/16")
Priced and sold each.
