4 Bar Hinge 3/4 x 12-1/4 Truth 35.09 Egress Fixed Rivet 90° Stop Anderberg 222 Standard Duty Stainless Steel

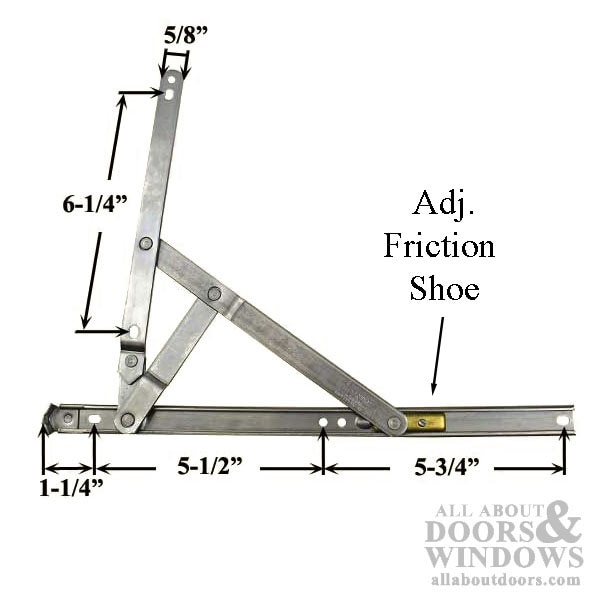

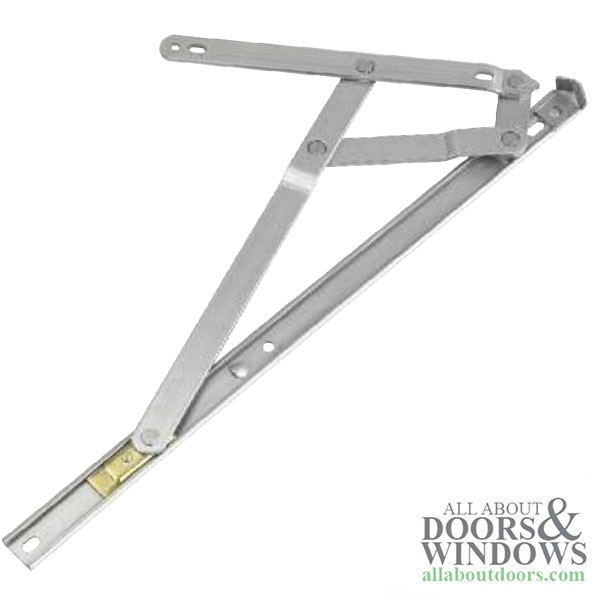

Truth's standard duty casement 4-bar Egress hinge with stop stainless steel

Application: Casement Windows
Model: Truth 35.09 Anderberg Hardware 222SS Series
Hinge Type: Egress Standard Duty 4 Bar Fixed Rivet
Call Size: 12 inch
Actual Track Width: 23/32 inch (18.16mm) 0.715
Actual Track Length: 12.61 inches (320.3mm)

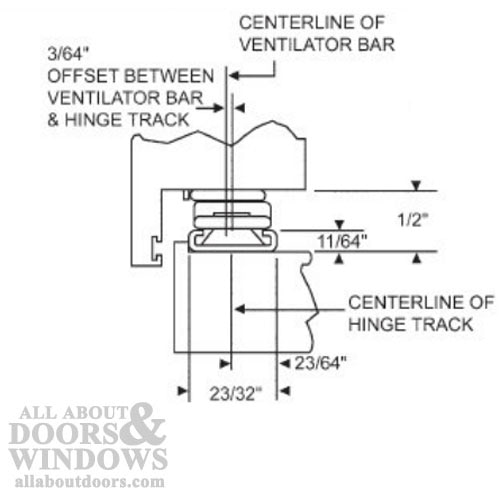

Hinge Pocket Height: 1/2 inch (12.7mm) 0.500
Stop: YES
Max Sash Width: 32 inches
Max Weight: 82 pounds
Shoe: Brass, Adjustable Friction
Rivet: Fixed
Material: Stainless Steel
Sold Each, no screws - Should be replaced in Pairs

Note: This hinge is made with Fixed Rivet or Loose Rivet

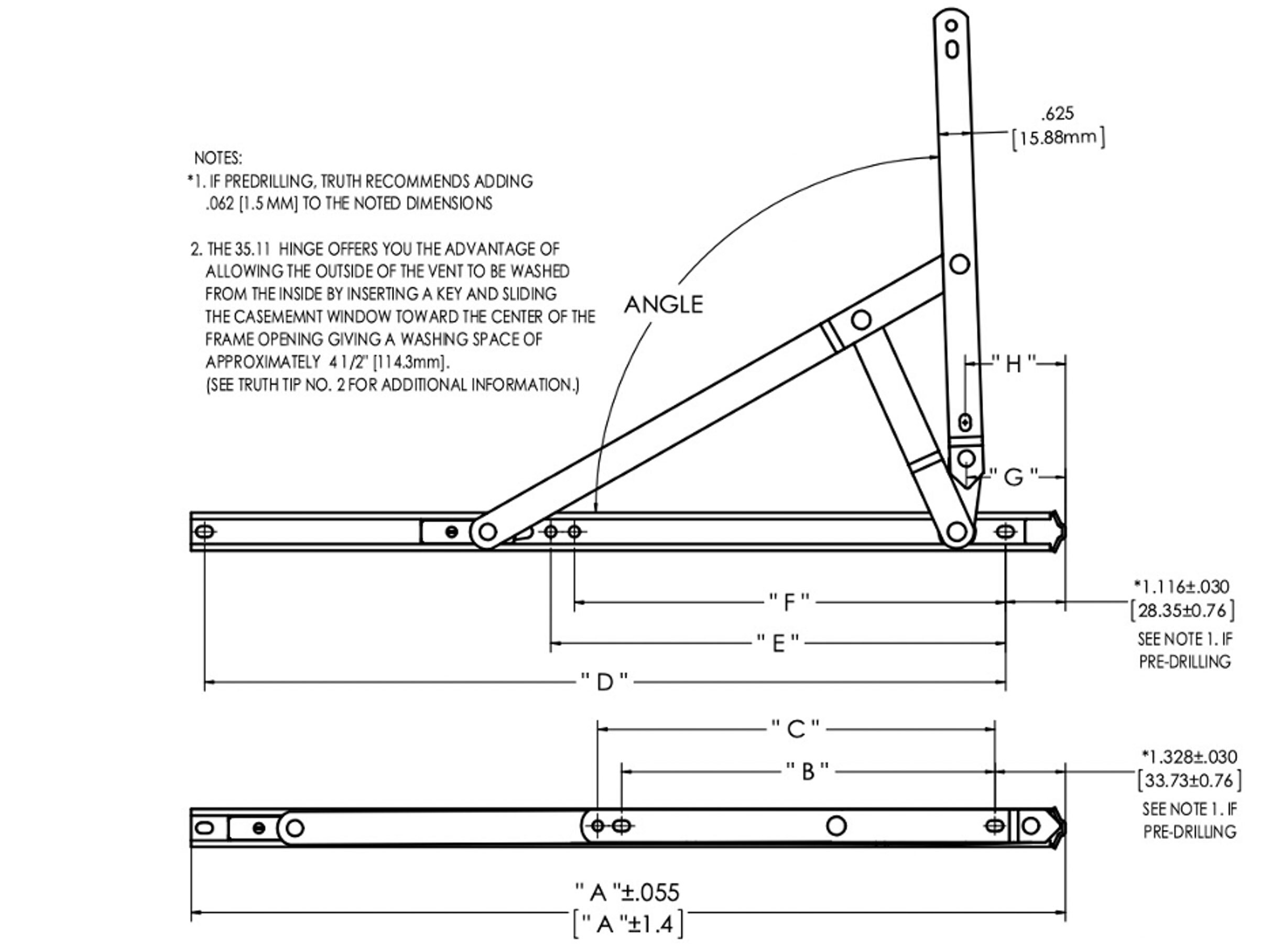

Measurements shown on Line drawing with Stop
A- 12.61 inches
B- 6.25
C- 6.68
D- 11.24
E- 5.93
F- 5.49
G- 2.02
H- 2.09
Degree of Opening: 84°

Additional Information
Egress Hinges are designed to be used in casement window applications and achieve approximately 90º of opening. When fully open the sash is positioned close to the side jamb to allow an average sized person the ability to escape through the window’s opening in case of an emergency as required by Egress codes. Egress Hinges are non-handed and made of durable stainless steel. These Egress Hinges are designed to project the sash out as it pivots to avoid interference between a lip vent and frame.
