20mm Winkhaus OML 45/92 Hooks @ 27.2 Down, 36.5 Up

Winkhaus One Motion Lock (OML) has been discontinued, parts are not available.

Replacement options are available, Please compare information shown below with your lock

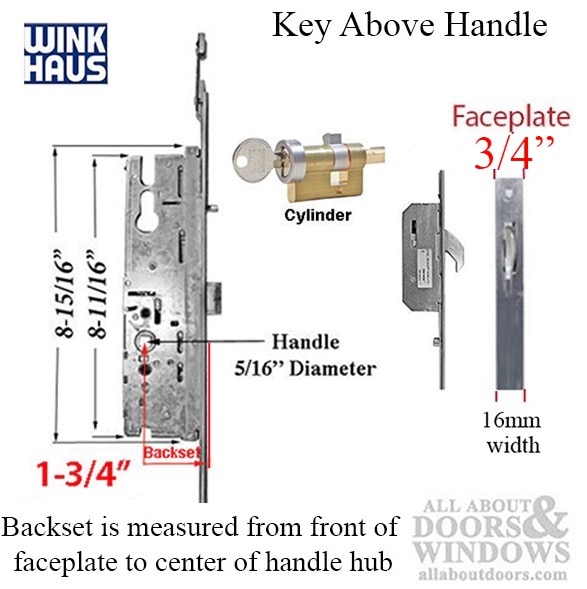

Key / handle Position: Key Above Handle

Locking devices: Deadbolt and 2 Hooks

Faceplate Width: 25/32 inch (20mm)  - -  Optional 5/8 inch (16mm)

Backset: 1-3/4 inch (45mm)

Handle height: 36 inch (914mm)

Faceplate Length: 86 inch + / - , same as door panel (actual heights may vary)

Handle / Cylinder PZ: 3-5/8 inches (92 mm)

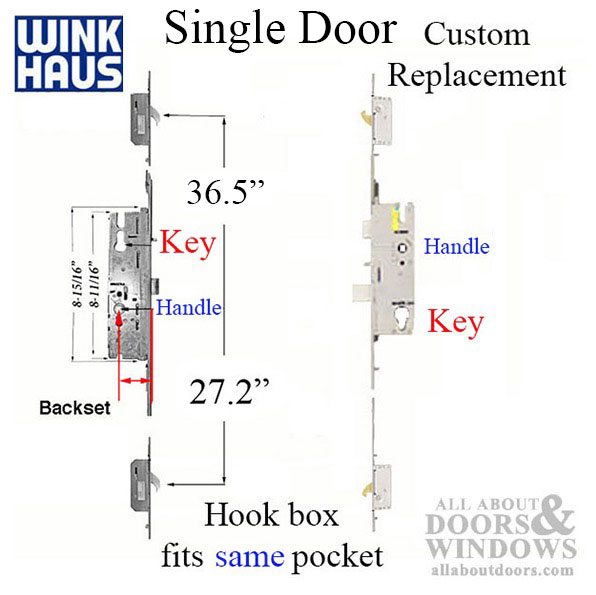

Top Hook position: 36.5 inches  (901mm)

Bottom Hook Position: 27.2 inches  (601mm)

Markings on some locks: G3 TFX020 2822972, 1346724

If this is your Winkhuas multipoint lock we have replacements for Single and Double French doors. - Contact office
