16mm Active Swing Hook, 60/92 Hook @ 25.70", handle height @ 41.11"

SPECIAL SIZE Hoppe HLS9000 Swinghook with 41.11 inch Handle Height and Swing hook 25.70 inches below handle

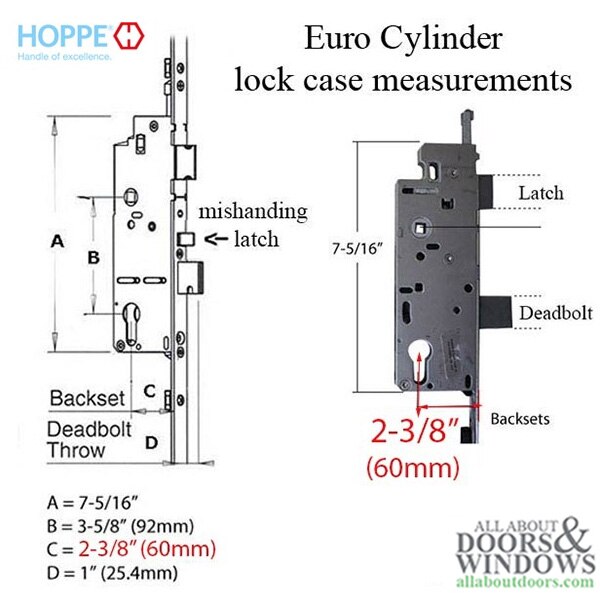

Faceplate: 5/8" (16mm)
Backset: 2-3/8" (60mm)
Deadbolt Throw: 1" (25mm)
Handle Height: 41.11" (1044.4mm) can be cropped to fit 33.63" to  41.11"
Bottom Swing Hook Position: 25.70" (653mm) Not Standard
Number of Screws: 5

Related Parts:
Available Bottom Gears: Hook at 29.65"
3868868 - 35/92 / 1-3/8" (35mm) Backset
3868876 - 45/92 / 1-3/4" (45mm) Backset
3868884 - 60/92 / 2-3/8" (60mm) Backset
3868892 - 70/92 / 2-3/4" (70mm) Backset

SPECIAL SIZE Hook @ 25.7" / 41.11" Handle Height - 3814341

Available Top Extensions
Part Number     Doors Panels Height:  Hook Position
3868770 - Doors 62.80-79.25”        hook @ 19.69“
3868796 - Doors 78.54-79.25”        hook @ 35.43“
3868809 - Doors 78.54-92.24”       hook @ 35.43“
3868817 - Doors 78.54-92.24”       hook @ 19.69“ & 35.43”
3868825 - Doors  90.08-106.30"    hook @ 23.62“ & 46.97”
3868833 - Doors 102.17 - 126.97” hook @ 23.62“ & 59.05”

To better understand please see our Multipoint Lock Glossary Of Terms
