Truth Ellipse Split Arm Operator, 4-1/2" Straight Link, Right Hand

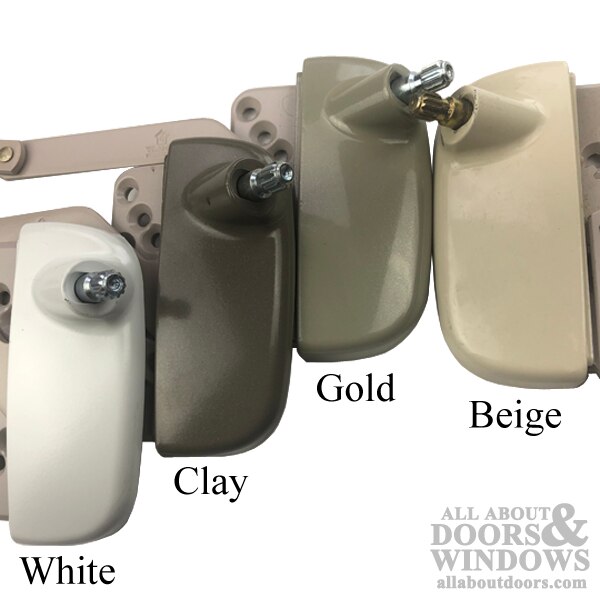

Weathershield casement Roto crank Operator, Offset link, Split Arm, Right Hand - Choose color

Original link was mounted on bottom of main arm and Curved upwards

Replacement can be a Straight arm Link mounted on top and is a substitute for the offset link mounted on bottom.

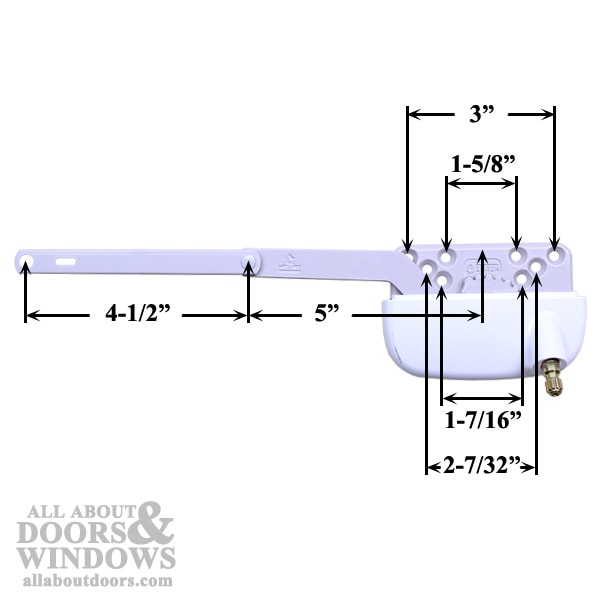

Offset Link: 4.5 inch # 30905 Mounted on bottom of main arm. ( Measured from center of rivet to center hole)
Link Length: 5 inches overall

Truth Part Numbers on some crank mechanisms: Main Body #45035, Main arm # 40351 RH / # 40352 LH Link # 30905, truth Mounting Bracket # 40448

Handle is NOT included.

Related Parts:
55083 - Left hand Replacement Operator
55084 - Right hand Replacement Operator

Crank Handles:
55311 Regular Handle
55312 Folding handle
55313 T-Handle
55317 Contour Handle
