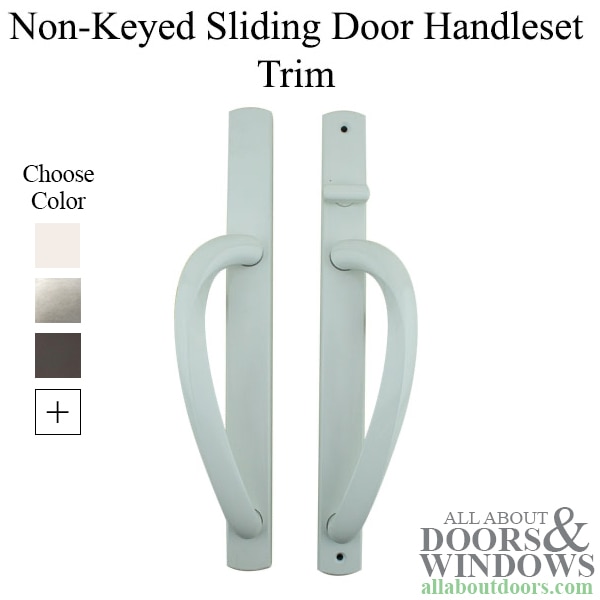

Truth Non-Keyed Curved Top Sliding Door Handleset Trim - Choose Color

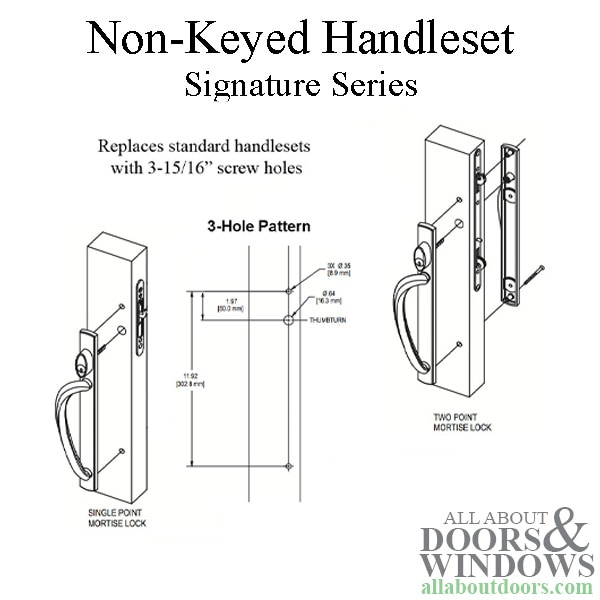

Truth 40.94 Signature Series Curved Top Sliding Door Hardware - NON-Keyed with Inside Thumbturn. Replaces many styles and brands including Andersen and doors with standard 3-15/16" screw hole handle sets. Will need to drill additional holes in door to accommodate bottom screw.
This style of handle has 3 functions:
1. Non-Keyed
2. Keyed, Schlage SC1
3. Dummy
Function: Non-Keyed

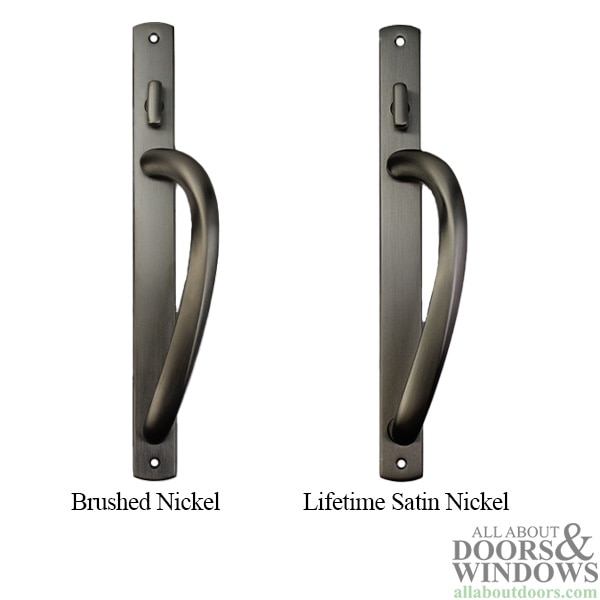

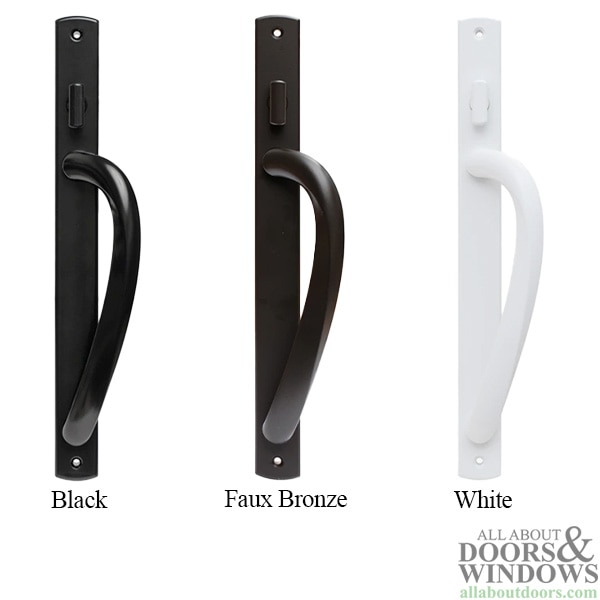

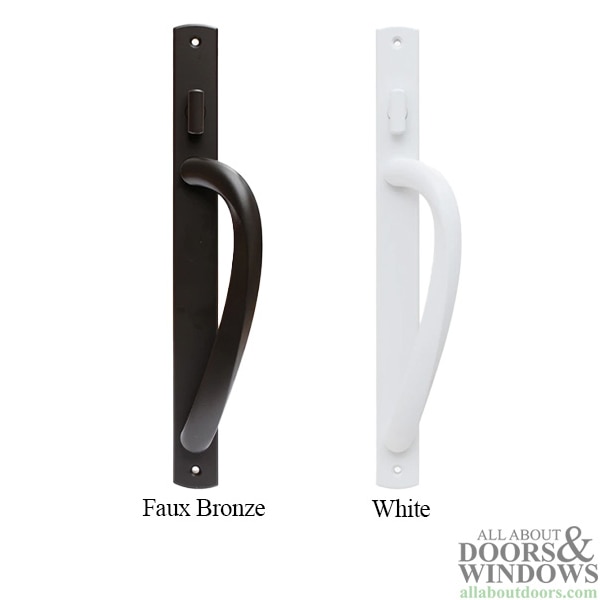

Color Options: White, Faux Bronze, Lifetime Brushed/Satin Nickel

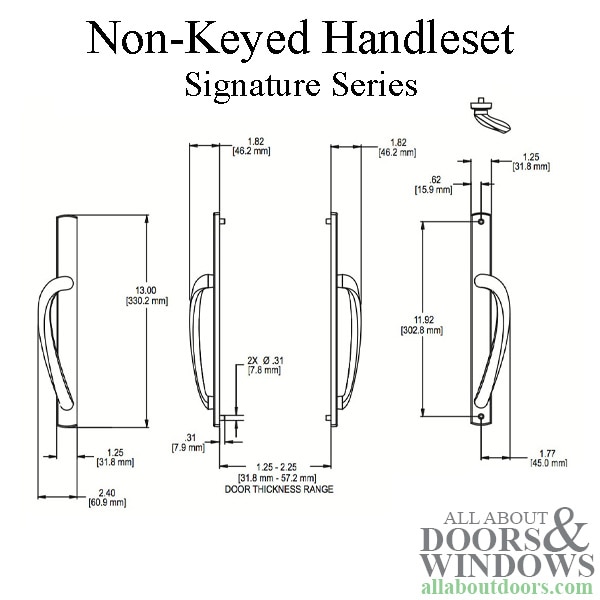

Installation Screw Holes: 11-15/16 inch (302.8mm)
Installation Screws: 8-32
Escutcheon Plate Width: 1-1/4 inch (31.8mm)
Escutcheon Plate Length: 13 inch (330.2mm)
Handle Screw holes: 7-3/8 inch
Handle Mounting Screws: 10-32 x 3/8
Thumb turn to top Installation hole: 2 inch
Material: Aluminum - Painted Finishes
Material: Brass - Premium PVD Finishes
Door thickness range: Comes with assorted screws
1-3/16 - 1-9/16 thick uses 1-3/4 inch screw
1-9/16 - 1-15/16 thick uses 2-1/8 inch screw
1-15/16 - 2-5/16 thick uses 2-1/2 inch screw
This style of handle has 3 functions:
1. Non-Keyed
2. Keyed, Schlage SC1
3. Dummy
Function: Non-Keyed
Color Options: White, Faux Bronze, Lifetime Brushed/Satin Nickel
Installation Screw Holes: 11-15/16 inch (302.8mm)
Installation Screws: 8-32
Escutcheon Plate Width: 1-1/4 inch (31.8mm)
Escutcheon Plate Length: 13 inch (330.2mm)
Handle Screw holes: 7-3/8 inch
Handle Mounting Screws: 10-32 x 3/8
Thumb turn to top Installation hole: 2 inch
Material: Aluminum - Painted Finishes
Material: Brass - Premium PVD Finishes
Door thickness range: Comes with assorted screws
1-3/16 - 1-9/16 thick uses 1-3/4 inch screw
1-9/16 - 1-15/16 thick uses 2-1/8 inch screw
1-15/16 - 2-5/16 thick uses 2-1/2 inch screw
This product is similar to or the same as the following part numbers in these brands:
Truth: 40.94.10.100.1, 40.94.FB.100.1, 40.94.33.100.1, 40.94.32.100.1
Truth: 40.94.10.100.1, 40.94.FB.100.1, 40.94.33.100.1, 40.94.32.100.1
