Truth Maxim Dual Arm Operator Casement, LH

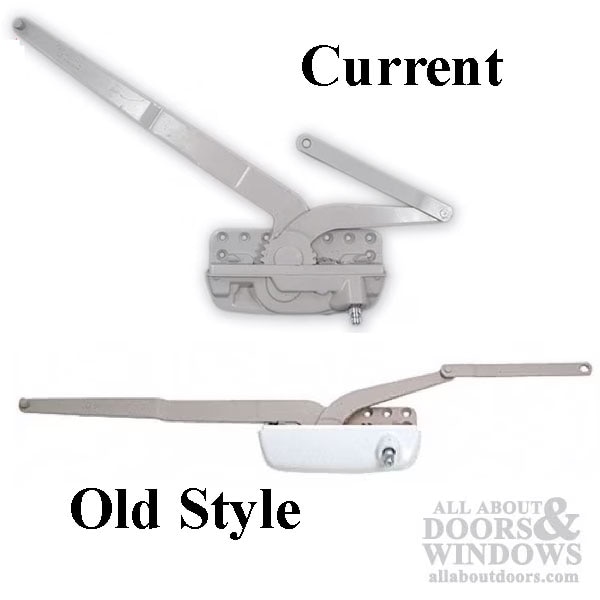

This product has been discontinued. WHEN SOLD OUT may Replace with #50.10.00-LH.
Additional components required with this replacement:
Cover/Handle #55309 and Stud/Snap-On Bracket #551093.

Used on Hurd, Weather Shield, Great Lakes and other window companies with glass of 19 inch or wider.

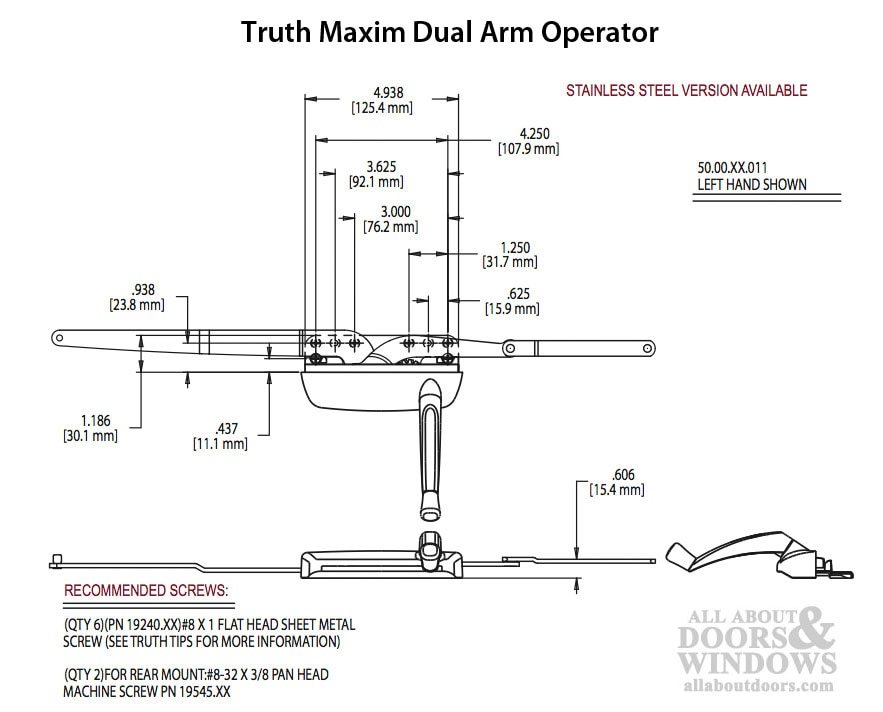

Truth 50.00 Maxim Dual Arm Series Operator, 10 inch arm with stud that attaches to a Square plastic shoe
Long Arm: 10 inch; Offset Up
Link Length: 4-7/8
Link Length from rivet center to rivet center: 4-7/16
Link Offset: Down
Markings: Truth # 41011 Stamped on Long arm
Available Colors / Finishes: White (pictured), Gold (pictured), Bronze, Chestnut Bronze
Handing: Left - As viewed from outside the home (Click here for right handed operator)

Related Parts: (Not Included)
55317 - Contour Crank Handle
55311 - Crank Handle (no contour shape)
55089 - Track
55090 - Slide Guide, Square Nylon
55091 - Left Hand Operator
55092 - Right Hand Operator

Note:
Truth Maxim Series is a window operating "system" where the hinges and operators are developed to work together to meet or exceed the maximum performance requirements of larger, more versatile casement and awning windows. The Maxim Series Dual Arm Operator is designed to operate sash sizes from 24" to 40" wide, 84" high and weighing up to 108 lbs.
