Strike Plate Keeper Raised 3/4" Single Point Sliding Door Lock
Patio glass door strike/keeper with 23/32 inch rise, single point sliding door lock.
Used on wood and vinyl sliding glass patio doors.
Slotted holes for screws provides easy adjustment.

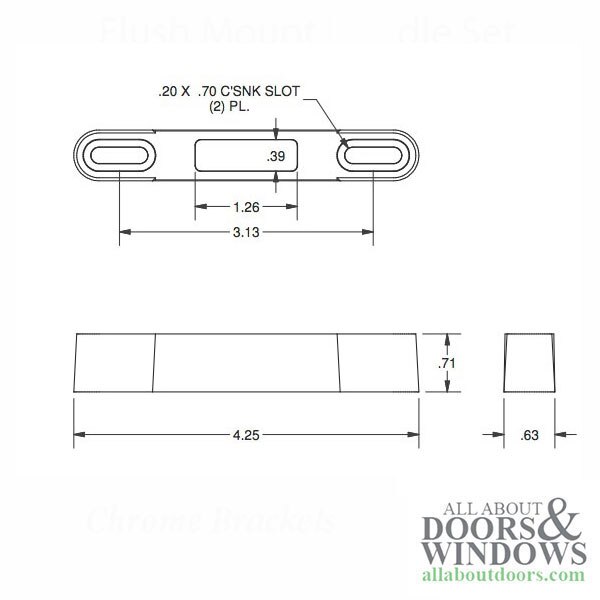

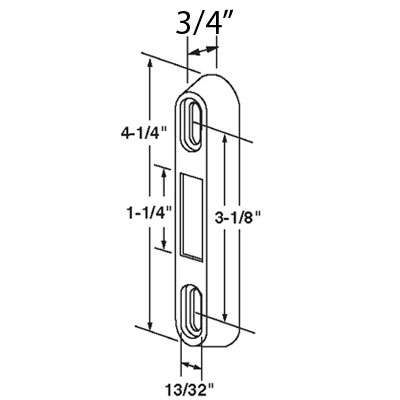

Overall Length: 4-1/4 inch
Base Width: 5/8 inch
Top Width: 5/8 inch base
Actual Height: 23/32 inch ( .710)
Screw Hole Center: 3 1/8 inch, slotted holes
Rectangular Hole: 1-1/4 inch for single hook latch
NOTE: There are 2 heights of this same keeper available: 1/2 inch and 3/4 inch
15152 - 1/2 inch height
15153 - 3/4 inch height (this one)
Used on wood and vinyl sliding glass patio doors.
Slotted holes for screws provides easy adjustment.
Overall Length: 4-1/4 inch
Base Width: 5/8 inch
Top Width: 5/8 inch base
Actual Height: 23/32 inch ( .710)
Screw Hole Center: 3 1/8 inch, slotted holes
Rectangular Hole: 1-1/4 inch for single hook latch
NOTE: There are 2 heights of this same keeper available: 1/2 inch and 3/4 inch
15152 - 1/2 inch height
15153 - 3/4 inch height (this one)
This product is similar to or the same as the following part numbers in these brands:
Strybuc Industries: 12-294
Truth: 32416
Strybuc Industries: 12-294
Truth: 32416
