Store Front Commercial Doors Pivot Hinge - Choose Color

Part Number: 380005
Price:$18.98 to $22.48
Replacement Pivot Set for Pitco commercial store front doors; TH1114KM Offset Pivots are used for both flush face frame installation and 1/8 inch recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. Need to select Handing and Finish; Doors viewed from outside.

Specifications:

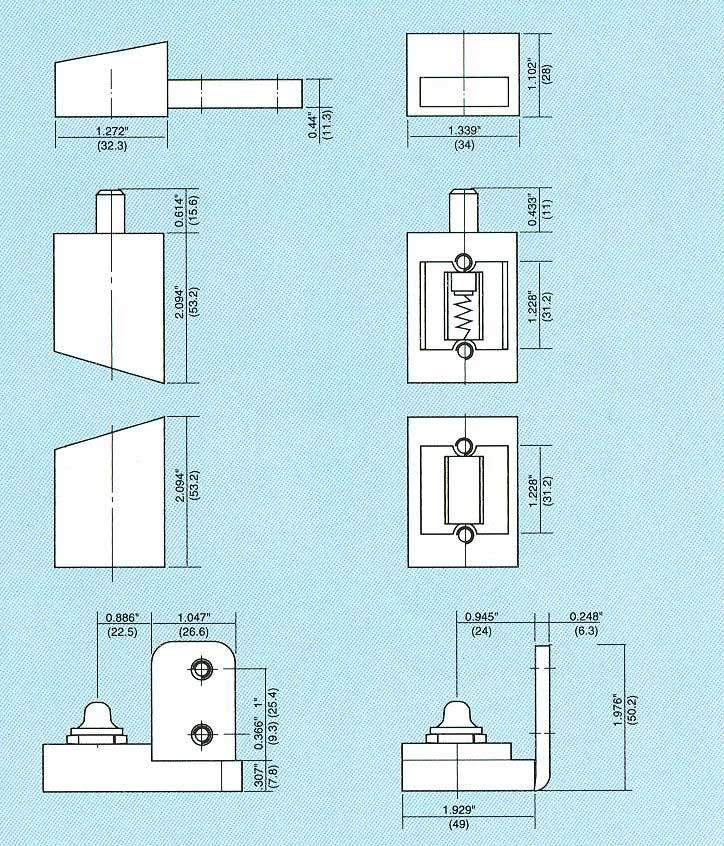

* 3/4 inch offset pivots for aluminum doors and frames
* For flush door / frame and 1/8 inch recessed door applications
* Weather resistant
* Aluminum case construction
* Vertical adjustment 1/8 inch
* Full race ball bearing and design, provides smooth operation on bottom pivot door portion
* No sag, entire weight of doors rests on floor mounted pivot portion
* Completely temper proof, yet easily removable, replaceable in unlocked position
* Finish: AL-Aluminum, DU-Duronotic Bronze

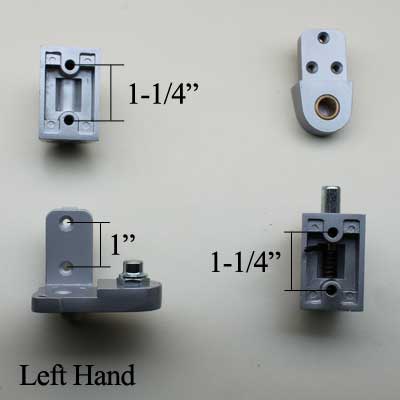

Handing: This is left handed.Ê
For right hand, see part #380006
