SLIMLINE mortise lock set, 30mm Backset - Silver

Slim line storm door mortise lock with 1-3/16 inch (30 mm) backset.

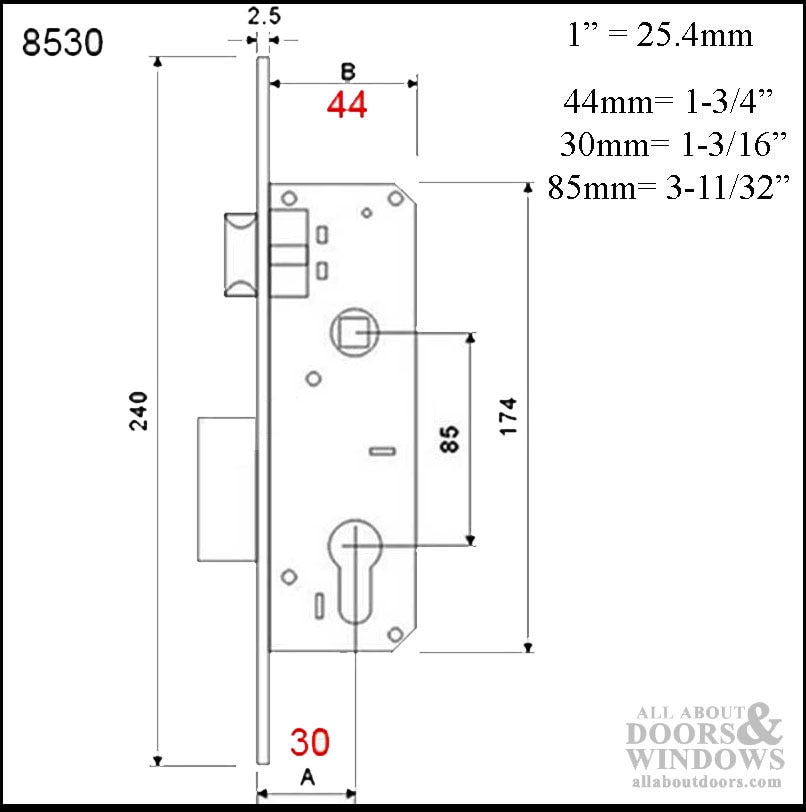

Model 8530

Faceplate Measures: 1 inch  (25 mm) by  9-7/16 inch (240 mm)

Face Plate Color: Silver

Screw hole Spacing:  8-5/16 inches (210 mm)

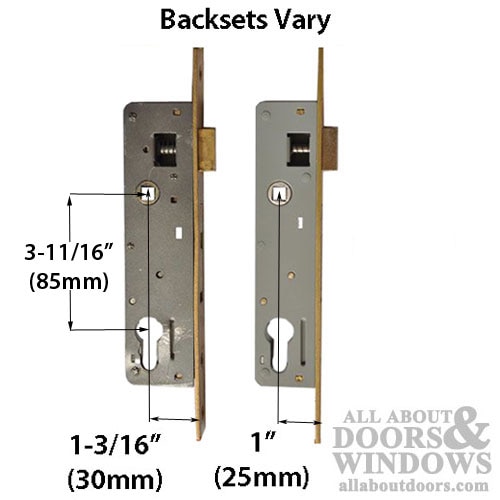

Backset: 1-3/16 inch (30 mm)

Deadbolt Throw: 1/2 inch (12.7mm)

Handle PZ: 3-11/32 inch (85 mm)

Backset is measured from the front of faceplate to center of Handle / cylinder hole

Can reverse latch by loosing screw behind until it spins the latch, then tighten into place.

Replaces CEL,  KFV, Tefco and Marks with 1-3/16 inch (30mm) Backsets

Markings: Made in China

The deadbolt latch may not match exactly with older styles, but adjustments can be made.

Priced and sold each.

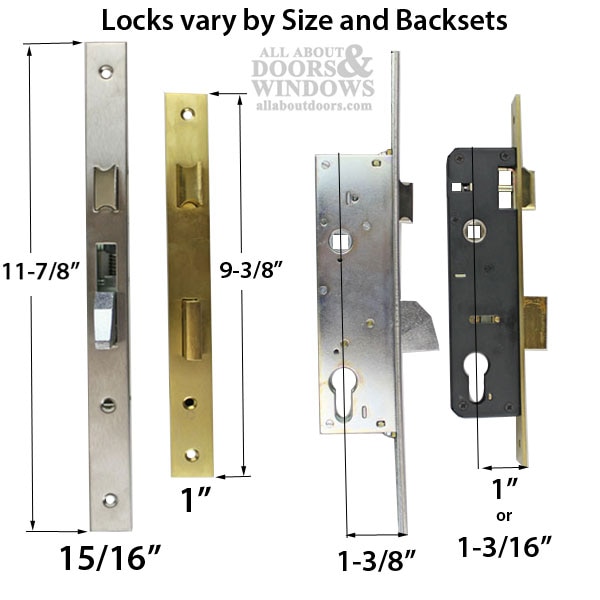

Related Lock Hardware:

301080 - 1 inch (25 mm) Backset on , Complete Mortise Lock Handles

301100 - 1-3/16 inch (30 mm) backset,  Mortise lock only

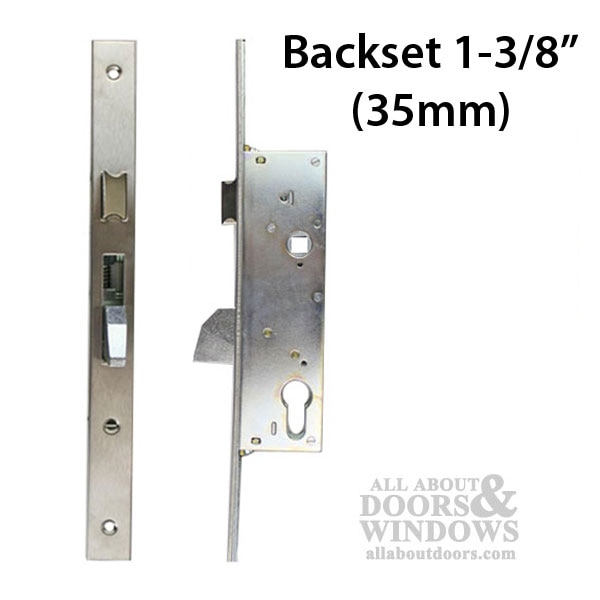

301103 - 1-3/8 inch  (35mm)  Mortise Lock Case only

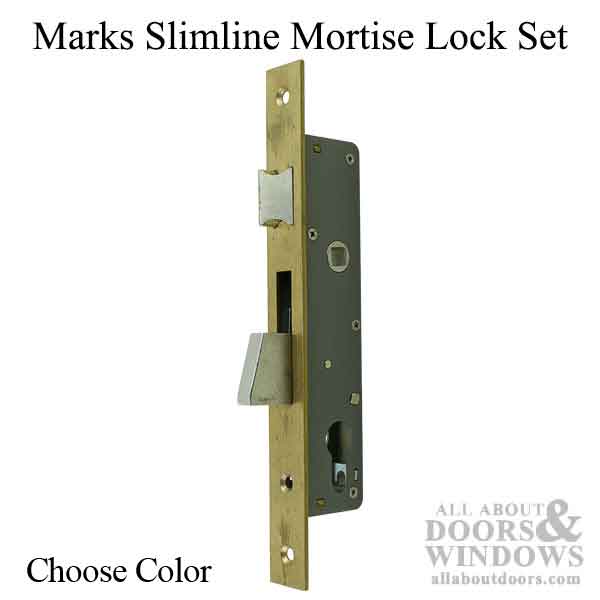

301104 - 1.0 inch    (25mm)  Marks Slimline lock body only
