Pella 2 point bolt lock for Storm door.

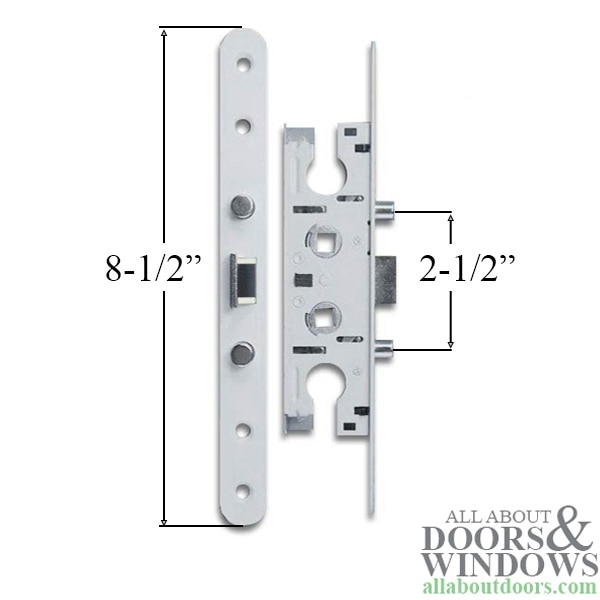

Bolts are 2-1/2 inches apart
Overall faceplate length: 8-1/2 inches
Installation screw holes: 7-5/16 ( screws not included)
PZ (center of handle to center of cylinder): 2-5/8 inches
Priced and sold each.
Available Colors: See image above for visual reference.
Black
Green
Cranberry
Brown
Putty
Tan
Almond (Poplar White)
White
Note: These come from the factory in bulk, Colored faceplates may have minor blemishes, which is normal.
Lock Removal:
There are 4 spring loaded tabs that hold the Mortise lock in the storm door, even when faceplate screws are removed.
Use small pry bar or stiff putty knife and the spring loaded tabs will retract when removing lock body
Put a piece of cardboard between screwdriver and door to prevent marring or chipping paint
Cylinder Removal:
The cylinder screw needs to be removed to take the keyed cylinder out of door.
The cylinder has a cam in the center that rotates to lock and unlock the door
The cylinder only comes out when the cam is in the proper position.
To Remove cylinder turn thumb turn slowly and pull, when the cam is in alignment the cylinder will come out.
Replacement cylinder must be made by Pella. Their cylinder knob/key turns 270 degrees before the cam starts to turn.
Handleset to use with this lock: 305014 - Pella Storm Door Handleset Only, Off-Center Cylinder - Choose Color
Strike to use with this lock: 305018 - Strike for Pella 2-Bolt Mortise Lock
PDF: Installation Instructions
