Hoppe MP Lock, 2 Hooks, 30mm Sliding Door Lock, 16mm Face

Part Number: 2082775
Price: $132.55
American cylinder above handle
HOPPE New Style Sliding door 2 point lock
Multi-Point Lock  will work on most Sliding Patio Doors.
Can be retrofitted to most wood doors.
Face Plate Measurements: 5/8" Wide (16mm), 30" long.
Locking Points: Two Hooks, one Below handle, one above.
Hooks: 21-1/4" Center of hooks
Spindle: 7mm
Lock Body Measurements:

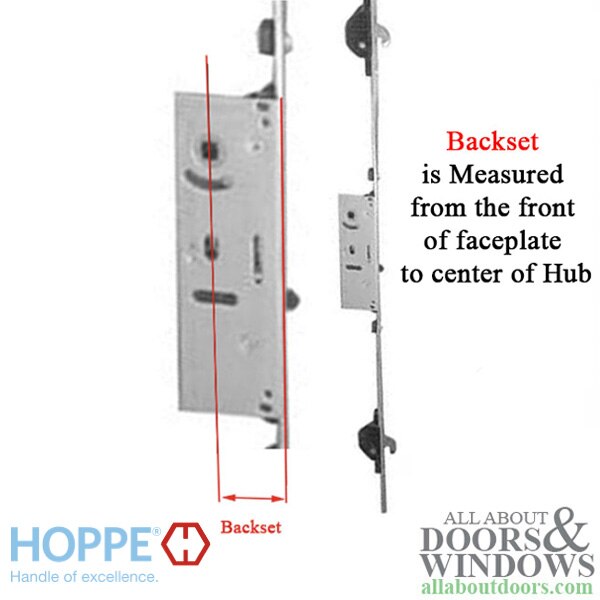

Backset: 1-1/8 inches (30mm) measured from the edge of lock to center of handle
Lock Function:
Locking door is a manual function
When door is closed, a black tab of face of lock is depressed and handle can be turned to extend 2 hooks. (21-1/4" Centers)
Outside Key or Inside thumbturn secures in locked position.

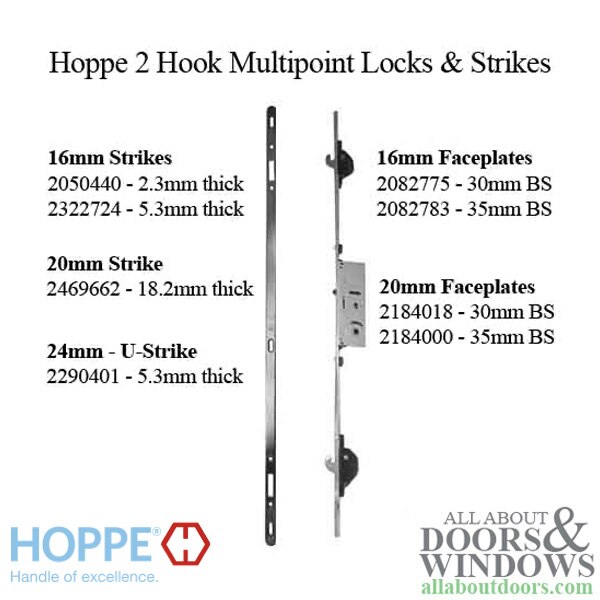

Related Hoppe Sliding Door Parts / Hardware:

5/8" (16mm) Faceplate:
2082775 - 2 point Sliding door Lock  1-1/8 inch (30mm) Backset
2087783- 2 point Sliding door Lock  1-3/8 inch (35mm)  Backset

25/32" (20mm) Faceplate:
2184018- 2 point Sliding door Lock  1-1/8 inch (30mm) Backset
2184000- 2 point Sliding door Lock  1-3/8 inch (35mm)  Backset

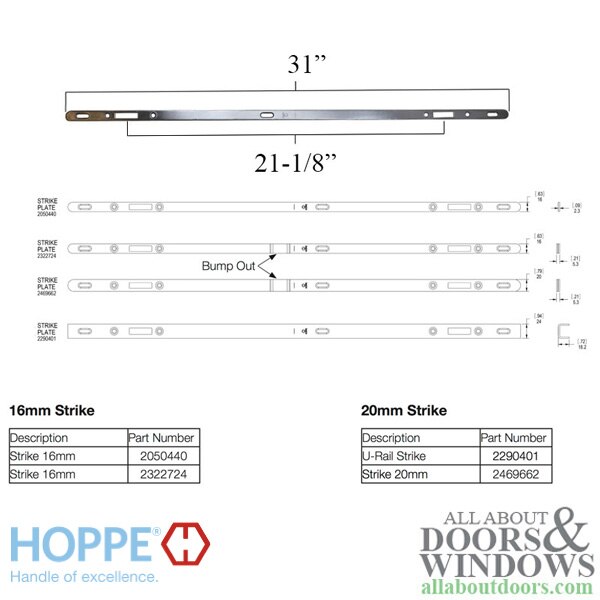

Strike Plates:
2050440 - Flat Strike, 16mm wide, 2.3 thick
2322724 - Flat Strike, 16mm wide, 5.3 thick
2469662 - Flat Strike, 20mm wide, 18.2 thick
2290401 - U-Strike, 24mm wide, 5.3 thick
8785699 - 45mm Wood Chipboard Screw (#8 x1-3/4" Screw is Recommended)

Handleset Trim Slding Door Hardware:
2081959 - Resista Polished Brass
8763267 - Antique Brass
2082011 - Satin Nickel
2081991 - White
2082003 - Matte Black
2081993 - Polished Chrome
2081975 - Brushed Chrome
2082038 - Oil Rubbed Brass
2082020 - Antique Nickel
2083743 - Rustic Umber (ORB)
