HLS-ONE 3-point Lock KIT, Double Door System w/60MM backset, choose door thickness

Part Number: 3270874-KIT
Price:$675.00 to $695.00
Active Panel: HOPPE HLS-ONE-HLS9000 3-point Manual Tongue System for 7' (84'') high active panels.
Inactive Panel: HOPPE HLS9000 Inactive Shootbolt Gear and Top Extension for 7' (84'') high inactive panels.

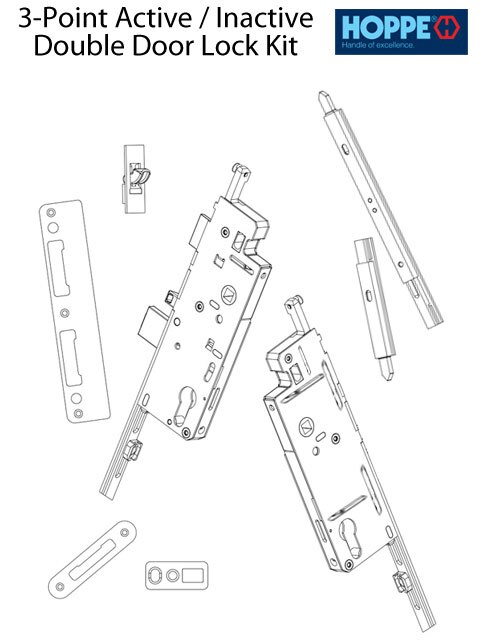

Kit includes: 60mm backset active gear, top extension, stainless steel tongue strikes and screws, 60mm backset inactive gear, top extension, stainless steel shootbolt strikes and screws.
When Gear and Extensions are connected the inactive locks length can range from 81.65 to 85.59 inches tall.
When gear and extensions are connected the active locks length can range from 71.06'' to 85.63''

Active Lock Measurements:
Faceplate Width: 5/8 inch (16mm)
Backset: 2-3/8 inch (60mm)
Handle Height: 36 inches (914mm)
Top Tongue Position: 29.25 inches (743mm)
Bottom Tongue Position: 26.42 (671mm)

Inactive Lock Measurements:
Faceplate Width: 5/8 inch (16mm)
Backset: 2-3/8 inch (60mm)
Handle Height: 36 inches (914mm)
Shootbolts: located at the extreme top and bottom of the lock
Shootbolt Throw: 20mm

Kit includes:
1 - Top Extension; Tongue Position @ 29.25
1 - Bottom Active Gear, Tongue position @ 26.42
1 - Latch & Deadbolt Strike plate (Radius - Curve Lip) - Stainless Steel
17 - Stainless Steel Screws 1 3/8''
10 - Screws 3/4'' (10) - Stainless Steel
2 - Stainless Steel Tongue Strike plates with Radius corners
4 - Dust caps for Latch & Deadbolt with Tongues Strikes - Black
1 - Instruction booklet
1 - Bottom Inactive Gear with bottom shootbolt
1 - Top Shootbolt Extension
2 - Stainless Steel Shootbolt strikes
