Casement Hinge 4-29/32 opening, Truth 10 inch track - Pair


  • Part #: 55175
  • Availability:

Price : $19.95

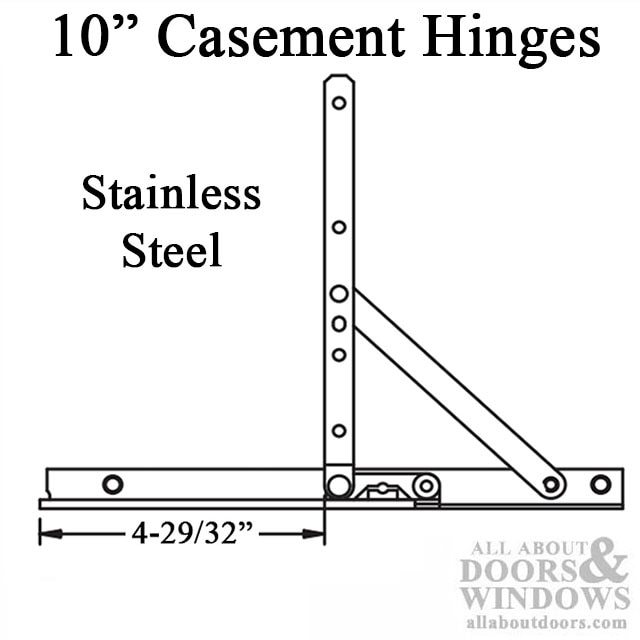

Truth 14.75 Concealed Casement Window Hinge, 10 Inch Track with Hinge
Standard brass snap stud

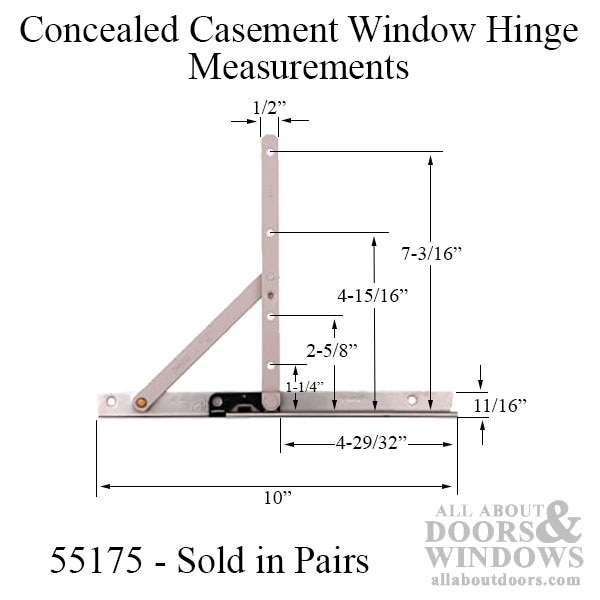

Long link is 7-5/8 inches, shorter detachable link is 5-1/2 inches

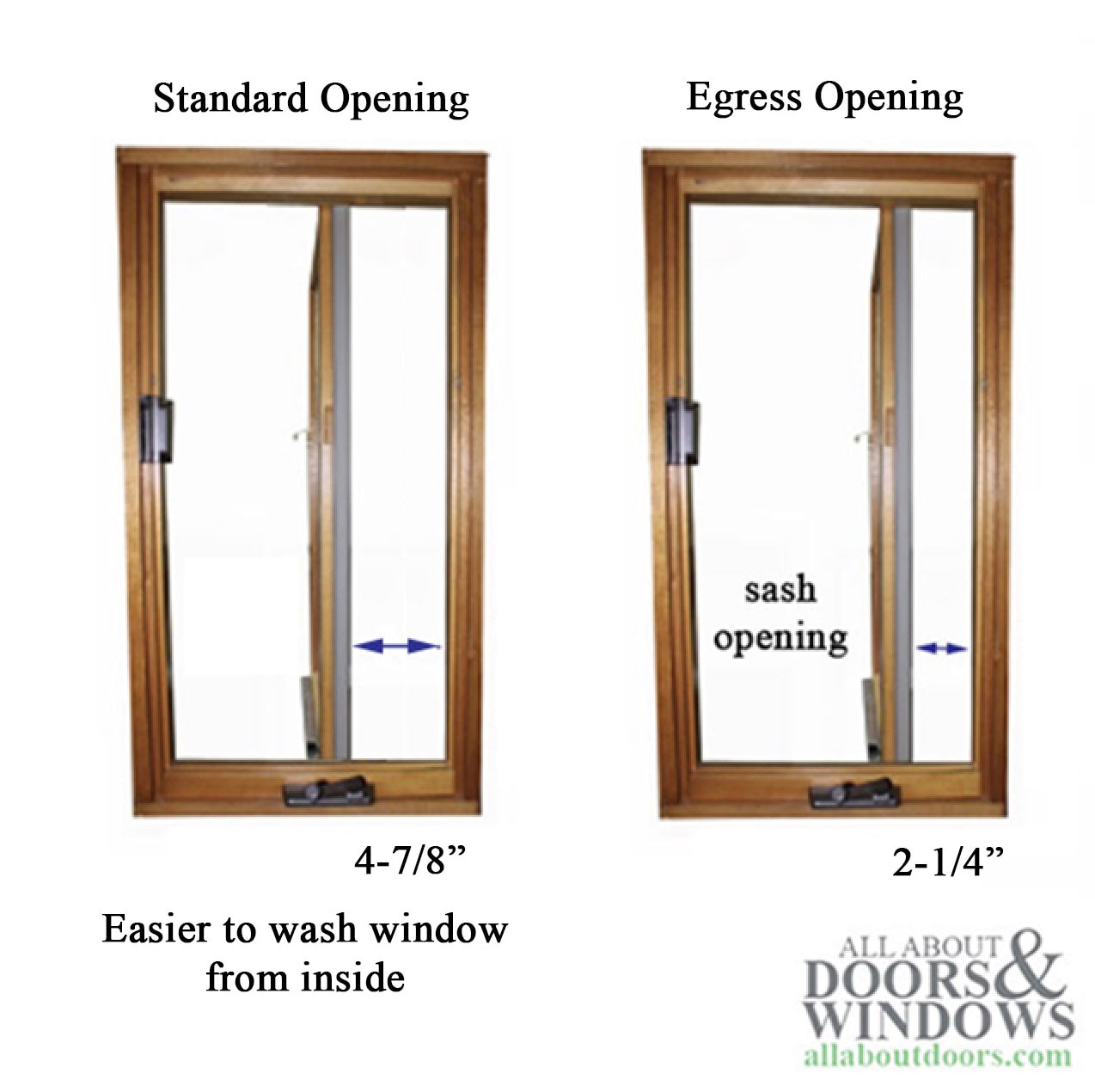

The opening measurement is 4.906 inches ( 4-29/32 )
Sold in pairs, priced in pairs - (Top and bottom)

Truth Part Numbers: on Tracks 40941-A / 40942-A
Long Arm Hinge 31133; Short Arm Hinge 30744 (part numbers may vary)

NOTE: This is a replacement for the Del Mar Toronto Hinge used on vinyl windows
The Sash screw holes match, the track screws matches on 1 hole, you will need to relocate other 3 screws
We reccomend filling old screw holes with Silicone, put piece of clear scotch tape over before installing track.

Included Components:
