Atrium Essve 81" Multipoint Lock, 20mm 45/92 Active Single Door - Euro Version
Discontinued: See 4990618 for Replacement
Original Atrium ESSVE Lock info:
Overall Length: 81" with radius ends
Faceplate Width: 25/32 (20mm)
Handle PZ: 3-5/8 (92mm)
Lock Cylinder: European Style
Backset: 1-3/4" (45mm)

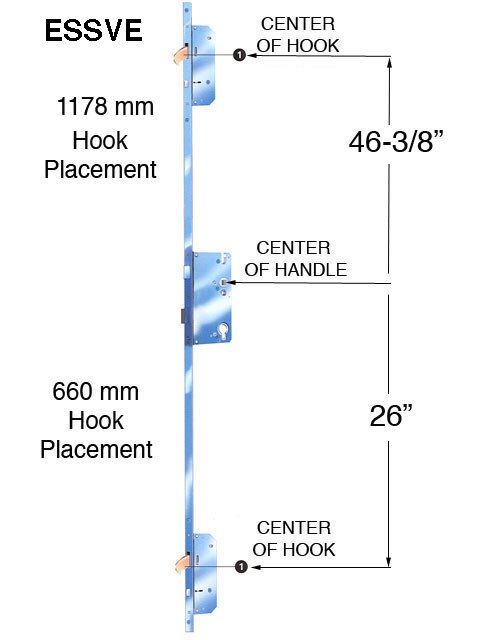

Bottom Hook Position: 26-3/4" (replacement 26")
Top Hook Position: 46-3/8" (replacement 45-3/4")
ESSVE Replacement Lock Info (Replacement Article):
The replacement kit has square vs radius ends; it is crop-able to fit your door panel height requirements 81-1/8". How to trim lock article
The Gear and hook lock boxes will fit back into the mortised groove in the door panel however, the hooks are off a little and may require slightly enlarging the strike plate hole.
ATRIUM DOORS - The original handle set trim for Atrium (Euro Cylinder Version) will not work; will require new trim. See additional images.
MARVIN / PEASE DOORS - The original handle set trim for Marvin, Pease and others with American Version lock have installation screw hole spacing of 6-3/8.
This trim will work with minor modifications to the lock body cylinder hole where the bottom screw goes though (a little tight, needs to be slightly enlarged with rasp).
Some PEASE DOORS had different Bore Hole spacing than others; the handle set trim was 2-3/8" wide, contact us if this is your case.
New Handle Set Trim Options:
If replacing we recommend the Expressions 2 x 12 Series Hardware
395009 - Modern, Square Top, Keyed
395007 - Traditional, Arch top, Keyed
Original Atrium ESSVE Lock info:
Overall Length: 81" with radius ends
Faceplate Width: 25/32 (20mm)
Handle PZ: 3-5/8 (92mm)
Lock Cylinder: European Style
Backset: 1-3/4" (45mm)
Bottom Hook Position: 26-3/4" (replacement 26")
Top Hook Position: 46-3/8" (replacement 45-3/4")
ESSVE Replacement Lock Info (Replacement Article):
The replacement kit has square vs radius ends; it is crop-able to fit your door panel height requirements 81-1/8". How to trim lock article
The Gear and hook lock boxes will fit back into the mortised groove in the door panel however, the hooks are off a little and may require slightly enlarging the strike plate hole.
ATRIUM DOORS - The original handle set trim for Atrium (Euro Cylinder Version) will not work; will require new trim. See additional images.
MARVIN / PEASE DOORS - The original handle set trim for Marvin, Pease and others with American Version lock have installation screw hole spacing of 6-3/8.
This trim will work with minor modifications to the lock body cylinder hole where the bottom screw goes though (a little tight, needs to be slightly enlarged with rasp).
Some PEASE DOORS had different Bore Hole spacing than others; the handle set trim was 2-3/8" wide, contact us if this is your case.
New Handle Set Trim Options:
If replacing we recommend the Expressions 2 x 12 Series Hardware
395009 - Modern, Square Top, Keyed
395007 - Traditional, Arch top, Keyed
Additional Resources
Multipoint Lock Worksheet
ESSVE Lock Replacement Article (PDF)
How To Trim / Crop Lock
Reverse Lock Handing:
Change the direction of the spring latch by first extending the deadbolt (see lock operation below), pull out the spring latch and rotate accordingly.
Lock Operation:
This lock has an Anti-Slam / Mishandling latch that needs to be pushed in to operate lock.
Lock: Lift the handle to extend deadbolt and other locking positions and turn thumb-turn to secure in locked position.
Unlock: Turn thumb-turn or key to unlocked position and push down on lever.
Multipoint Lock Worksheet
ESSVE Lock Replacement Article (PDF)
How To Trim / Crop Lock
Reverse Lock Handing:
Change the direction of the spring latch by first extending the deadbolt (see lock operation below), pull out the spring latch and rotate accordingly.
Lock Operation:
This lock has an Anti-Slam / Mishandling latch that needs to be pushed in to operate lock.
Lock: Lift the handle to extend deadbolt and other locking positions and turn thumb-turn to secure in locked position.
Unlock: Turn thumb-turn or key to unlocked position and push down on lever.
