Andersen Window - Perma-Shield Casement Single Arm Operator,
Wood, PSC, Straight arm, 7191-32, L H
Manufactured from 1979 TO 1982 Operator No. 7191-32
Stone colored Nylon shoe attached to Top side of operator Arm
Straight arm operator for left hand casement units manufactured May 1974 to 1995.
This operator fits visible glass dimension width of 19 3/4 or 24.

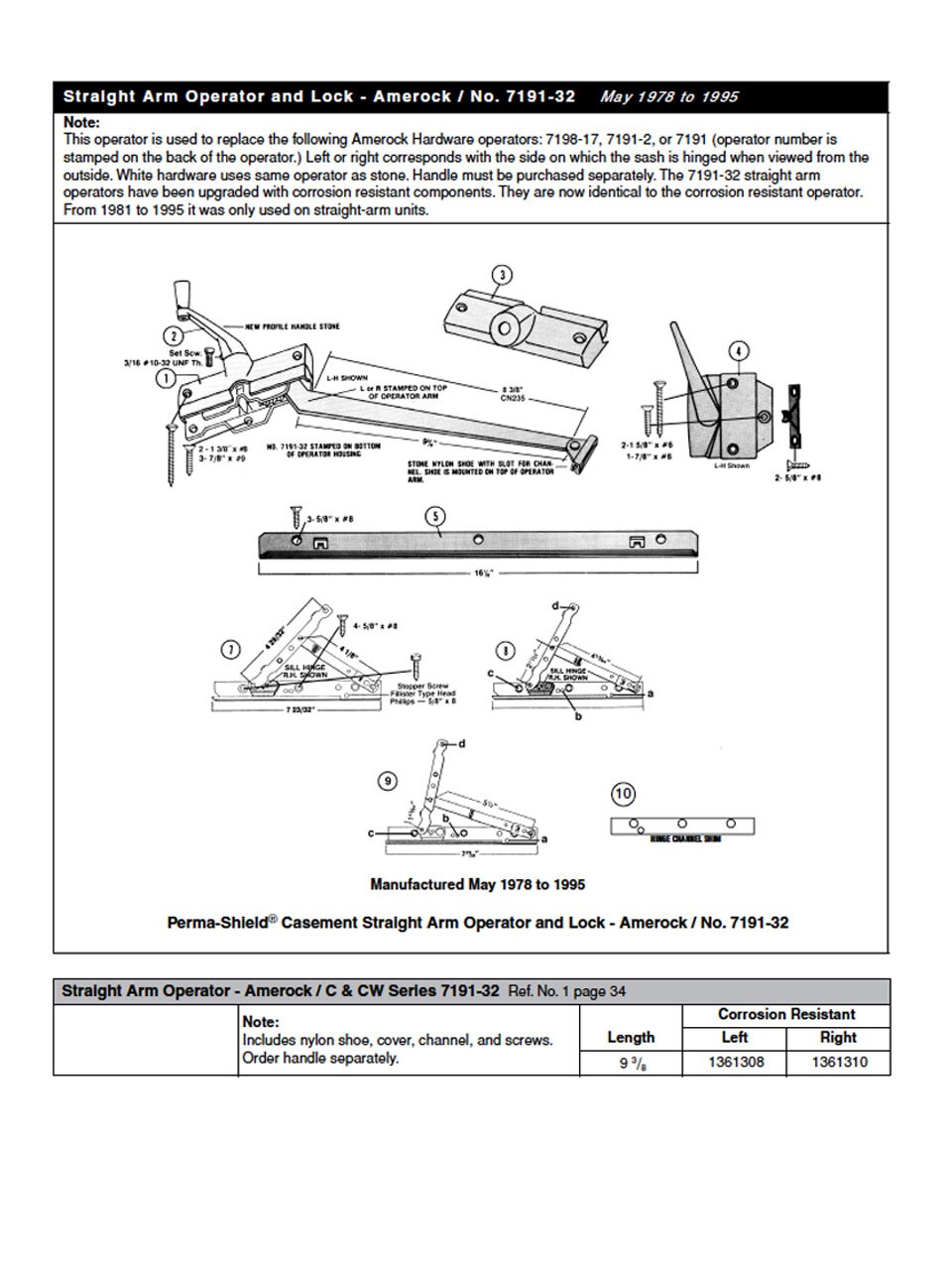

It is used to replace previous vintage operators with series numbers 7198-17, 1818-2, or 7191 stamped on the back of the operator.
This operator stamped with series 7191-32 has been upgraded with corrosion resistant components.

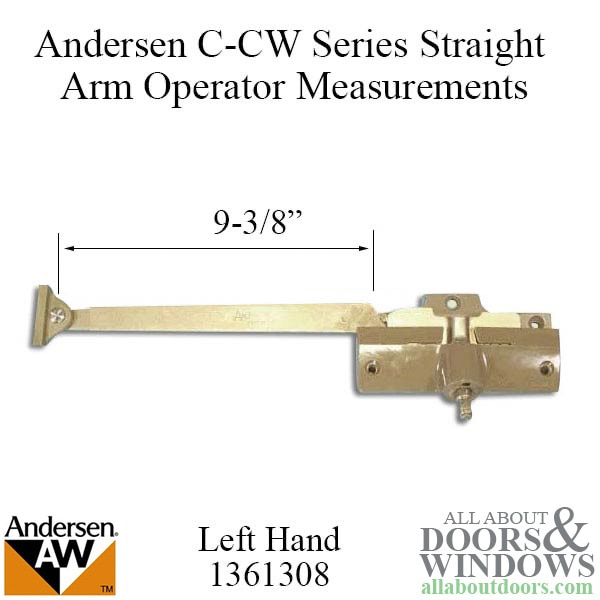

The length of the arm from the rivet to the elbow or bend is 9 3/8.
Includes nylon shoe and cover only
Handle must be purchased separately.
A left hand unit will have the lock on the left hand side viewed from the interior.
Related Andersen Casement window hardware:
1361308 - Left Hand Operator ( Left Hand Shown )0532408
- Operator Handle Only, Stone - left/right1351332
- Operator Handle Only, White - left/right0532610
- Operator Cover - Stone1351330
- Operator Cover - White
Written Article: Andersen Casement Window Operator Replacement
Video From Andersen: How to Replace Straight-Arm Operator
This product is similar to or the same as the following part numbers in these brands:
Strybuc Industries: 750-1361308
